CCTV Video SONY Camera Module Color Block FCB-EX11DP 1/4 - type EXview HAD CCD

CCTV Video SONY Camera Module Color Block FCB-EX11DP 1/4 - type EXview HAD CCD

Feature:
*  1/4-type EXview HAD CCD
*  Advanced Digital Signal Processor (DSP)
*  High Horizontal Resolution of 530 TV Lines
*  120x Zoom Ratio (10x Optical, 12x Digital)
*  SMART (Sony Modular Automatic Lens Reset Technology) Lens Control
*  Angle of View (H) - 46.0° (wide end) to 4.6° (tele end)
*  Advanced Spherical Privacy Zone Masking with Mosaic Effect
*  Video Motion Detection
*  Minimum Illumination - 1.0 lx (F1.8, 50 IRE typical)
*  16 bytes memory
*  E-Flip Function
*  Slow AE Response - Ideal for monitoring areas in which lighting conditions abruptly change
*  Spot AE
*  Multi-Line On-screen Display
*  Picture Freeze Function
*  Electronic Shutter/Slow Shutter - 1 to 1/10,000s, 22 steps
*  High-Speed Serial Interface (maximum 38.4 Kb/s with TTL Signal-Level Control - VISCA protocol
*  Internal/External Sync
*  Customizable Settings
*  Dimensions: 35.9 x 40.8 x 59.2 (mm)
*  Mass: 95g


Applications:
Whether your requirement is for a fixed, dome, or Pan/Tilt/Zoom camera.
Underground inspection systems of oil gas pipes
Low vision systems
Police vehicles

Competitive Advantage:
The new ultra-compact and lightweight FCB-EX11DP camera is specifically designed for easy integration into mini-dome housings for superb observation.
Auto-focus performance and small size make it the ideal contender in space restricted environments .

Description:
The new ultra-compact and lightweight FCB-EX11DP camera is specifically designed for easy integration into mini-dome housings for superb observation. Its outstanding picture quality, excellent auto-focus performance and small size make it the ideal contender in space restricted environments such as underground inspection systems of oil gas pipes, low vision systems, police vehicles and more. The FCB-EX11DP incorporates a 1/4-type EXview HAD CCD™ sensor and is equipped with a 10x optical zoom lens that can provide a 120x zoom ratio when combined with the digital zoom. In addition, the FCB-EX11DP color block camera inherits many of the excellent features found in Sony's new FCB D version cameras such as slow AE Response, Advanced Spherical Privacy Zone Masking and Multi-line on-screen display. With its excellent picture quality, compact size and feature-rich design, the FCB-EX11DP is ideal for a wide range of applications.

Technical specification:

Camera Specifications	Detail:
Image Device	1/4-type EXview HAD CCD
Effective Pixels	Approx. 440000 pixels
Digital Zoom	12x (120x with optical zoom)
Horizontal Viewing Angle	46° (wide) to 4.6° (tele)
Minimum Object Distance	200 mm (wide) 1.0 m (tele)
Sync System	Internal/External (V-lock)
Electronic Shutter	1 to 1/10000 s 22 steps
White Balance	Auto ATW Indoor Outdoor One-push Manual
Gain	Auto / Manual (-3 to 28 dB 2 dB steps)
EV Compensation	-10.5 to 10.5 dB (1.5 dB steps)
Backlight Compensation	On/Off
Privacy Zone Masking	On / Off (24 positions)
Character Generator	OSD: 11 Lines (20 characters per line) Camera Mode display: ON/OFF
Focus System	Auto (Sensitivity: normal and low) One-push AF Manual Infinity Interval AF Zoom Trigger AF
Picture Effects	E-Flip Nega Art Black & White Mirror Image
Exposure Control	Auto Manual Priority Mode Bright EV Compensation Backlight Compensation Slow AE
Video Output Specifications	Detail:
Lens Value	10x
S/N Ratio	More than 50 dB
Minimum Illumination	1.0 lux
Video Output	VBS: 1.0 Vp-p (sync negative) Y/C
Signal System	PAL
Horizontal Resolution	On/Off (On: 530 TV lines)
Horizontal Resolution Value	530 TV Lines
Interfaces Specifications	Detail:
Camera Control Interface	VISCA (TTL signal level) Baud rate: 9.6 Kb/s 19.2 Kb/s 38.4 Kb/s 1 or 2 Stop bit selectable
General Specifications	Detail:
Dimensions (W x H x D)	1 7/16 x 1 5/8 x 2 3/8 inches (35.9 x 40.8 x 59.2 mm)
Weight	3.3 oz (95 g)
Operating Temperature	32 to 122 °F (0 to 50 C°)
Storage Temperature	-4 to 140 °F (-20 to 60 C°)
Power Consumption	1.9 W (motors inactive) 2.8 W (motors active)
Power Requirements	DC 6 to 12 V

SONY FCB-EX2700P 960H CCD Camera Module 40x Zoom Defog Auto Focus 670 TV lines

SONY FCB-EX2700P 960H CCD Camera Module 40x Zoom Defog Auto Focus 670 TV lines

Features:
*  Sony FCB-EX2700P Color CCD block camera
*  Sony FCB-EX2700P PAL / Sony FCB-EX2700 NTSC
*  Defog
*  3D + 2D
*  4 Pin Conductor Wire Harness (S-Video)
*  Horizontal resolution of 670 TV lines
*  40x zoom lens
*  Super HAD CCD II image sensors (perfect for dark environments
*  Wide-D (wide dynamic range), Auto ICR, and Spherical Privacy Zone Masking
*  Size( WxHxD): 50.0 x 60.0 x 90.9 MM
*  Weight: About 265G

Description:

Cameras in this new series offer excellent picture quality with a horizontal resolution of 670 TV lines, thanks to the use of Super HAD CCD II image sensors and a newly developed image processor. These cameras also incorporate high-performance optical zoom lenses (including high resolution 40x, and bright 28x and 18x lenses), allowing you to select the right camera according to your varying needs. The new FCB-EX series block cameras uses a Progressive Scan (PS) mode to provide smooth and clear images without interlace artifact effects when viewing details in a moving image. Featuring Wide-Dynamic Range, Digital Output (ITU-R BT656), Visibility Enhancer, De-fog, StableZoom function and Auto ICR applications, the new FCB-EX block camera series s idealy suited for Security Survelience, Intelligent Traffic, and Remote Monitoring applications.

Competitive Advantage:
All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series such as Wide-D*, Auto ICR, and Spherical Privacy Zone Masking, and they are specifically designed to be integrated into security domes/cameras. These features and breadth of choice enable you to pick the right camera every time.

Applications:

The new FCB-EX block camera series s idealy suited for Security Survelience, Intelligent Traffic, and Remote Monitoring applications.



Technical specification:

Image Sensor	1/4-type Super HAD CCD II
Image Sensor (Number of Effective Pixels)	Approx. 570,000 pixels
Horizontal Resolution	670TVL
Signal System	PAL
Minimum Illumination (50%, Normal mode, wide-end, aperture (MAX), F ratio) (typical)	0.6 lx (Shutter speed: 1/50 sec) 0.04 lx (Shutter speed: 1/3 sec) 0.01 lx (Shutter speed: 1/3 sec, ICR ON)
Recommended Illumination	100 lx to 100,000 lx
S/N Ratio	More than 50 dB
Gain	Auto/Manual (-3 step to 28 step, +2 step/total 16 steps)
Shutter Speed	1/1 to 1/10,000 sec, 22 steps
Sync System	Internal/External(V-Lock)
Exposure Control	Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE
Backlight Compensation	Yes
Aperture Control	16 steps
White Balance	Auto WB, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
Lens	40x optical zoom f=3.06mm (wide) to 122.4mm (tele) F1.6 to F4.6
Digital Zoom	12x (480x with optical zoom)
Focusing System	Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on
Horizontal Viewing Angle (SD)	60.0°to 1.6 °
Minimum Object Distance	10 mm to 1500 mm
Auto ICR	Yes
Wide-D *1	Yes (On/Off) (On : 90dB)
Noise Reduction	Yes
Progressive Scan Mode	Yes
Image Stabilization	No
Stablezoom	No
Digital Output	Yes
Tone Reproduction	Yes(VE)
Spherical Privacy Zone Masking	Yes
Motion Detection	Yes
Alarm	Yes
Slow AE Response	Yes (Max. 2 minutes)
Picture Effects	Neg. Art (Negative/Positive Reversal), Black White (Monochrome Image), Color enhancement
Picture Freeze	Yes
Slow Shutter	Yes
Temperature Readout	Yes
Title Display	20 characters/line, max. 11 lines
Camera Mode Display	Yes(English)
Key Switch Control	Yes
Camera Operation Switch	Yes
Video Output	Digital: Y/Pb/Pr 4:2:2 (Comparable to ITU-R BT656) Analog: VBS: 1.0 Vp-p (sync negative), Y/C
Camera Control Interface	VISCA (CMOS 5 V level) Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps Stop bit: 1 bit
Power Requirements	6.0 V to 12.0 V DC
Power Consumption	2.4W(motors active: 3.2 W)
Operating Temperature	-5 ℃ to +60 ℃ 23°F to 140°F
Storage Temperature	-20 ℃ to +60 ℃ -4°F to 140 °F
Operating Humidity	20% to 80%
Storage Humidity	20% to 95% Absolute humidity : 36 [g/m3]
Dimensions (W x H x D)	50.0 x 60.0 x 90.9 mm
Mass	Approx. 265 g

SONY FCB-EX2400P 28x Wide-D 960H CCD Color Block Zoom Module Camera

Sony FCB-EX2400P Camera Module PAL 960H Analog Block Camera with 28X Zoom

Features:
*  Sony FCB-EX2400P block camera PAL
*  28x zoom lens
*  Horizontal resolution of 670 TV lines
*  Equipped with Super HAD CCD II image sensors, the FCB-EX2400P at 0.4 lx.* allows high-quality images to be captured even in dark environments
*  Progressive Scan Mode
*  Digital Interface
*  (VE) Visibility Enhancer
*  Wide-D (wide dynamic range)
*  Image Stabilization and StableZoom™
*  Auto ICR
*  Spherical Privacy Zone Masking
*  Size(W x H x D):50.0 * 57.5 * 89.8 MM
*  Weight: About 245G

Description:

Cameras in the new FCB-EX Series offer excellent picture quality with a horizontal resolution of 670 TV lines, thanks to the use of Super HAD CCD II™ image sensors and a newly developed image processor. These cameras also incorporate high-performance optical zoom lenses (including high-resolution 40x, and bright 28x and 18x lenses), allowing you to select the right camera according to your varying needs.
All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series such as Wide-D*, Auto ICR, and Spherical Privacy Zone Masking, and they are specifically designed to be integrated into security domes/cameras. These features and breadth of choice enable you to pick the right camera every time.

Competitive Advantage:
The Sony FCB-EX2400P block camera offers excellent picture quality with a horizontal resolution of 670 TV lines, thanks to the use of Super HAD CCD II™ image sensors and a newly developed image processor. The Sony FCB-EX2400P block camera also incorporates a high-performance 40x zoom lens. Additional features of the Sony FCB-EX2400 include Wide-D (wide dynamic range), Auto ICR, and Spherical Privacy Zone Masking in a PAL Format .

Applications:

High performance bright 28x optical zoom lens for integration into security domes/cameras .
But also suited for Security Survelience, Intelligent Traffic, and Remote Monitoring applications.



Technical specification:

Super HAD CCD II Image Sensor
Thanks to high-performance Super HAD CCD II image sensors, the FCB?EX2400P at 0.4 lx.* allows high-quality images to be captured even in dark environments. Furthermore, it delivers an excellent horizontal resolution of 670 TV lines, enabling detail to be captured in scenes.
* IRE 50%, AGC ON.
Progressive Scan Broadens Capabilities
In Progressive Scan mode, the video signal is processed by progressive scan to achieve clear images without any flicker effect. Since network cameras typically have backend systems based on progressive scan, the original picture quality can be maintained without requiring conversion from interlace scan to progressive scan.
Powerful 28x Optical Zoom Lens
The Sony FCB-EX2400P camera is equipped with a high-resolution 28x optical zoom lens. Together with digital zoom, these cameras achieve a 336x zoom ratio, allowing high-quality picture capture over long distances.
Wide Dynamic Range with New Technology
The Wide Dynamic Range (Wide-D) feature allows for the capture of clear images in extreme lighting conditions.
*  Auto Mode - When shooting in high- or low-contrast lighting situations, the camera monitors the luminance differences within an image and automatically switches the Wide-D feature on and off, depending on the visibility of the subjects and background.
*  Interlace Wide-D and Progressive Wide-D Modes - There are two modes to choose from. Interlace Wide-D mode is ideally suited to high-contrast lighting environments. Progressive Wide-D mode is suited to low-contrast environments.
Visibility Enhancer (VE)
The powerful Visibility Enhancer corrects tone curve dynamically and adaptively on a pixel-by-pixel basis while continuously enabling greater visibility in contrasting environments.
De-fog
The De-fog function helps to improve visibility in low-contrast environments such as foggy or smoky scenes. This feature enhances and optimizes contrast in this type of situation.
High-quality Digital Output
The Sony FCB-EX2400P block camera is equipped with a digital interface (Y/Cb/Cr 4:2:2) which is comparable to ITU-R BT656. Using this digital interface, the quality of the camera’s video signal does not deteriorate. In addition, there is no need for an external analog/digital converter between the camera and any other equipment.
Various Operation Modes
The Sony FCB-EX2400P camera has four operation modes so you can choose the best one depending on your priorities for the application: for example, sensitivity, resolution, or other factors.
Enhanced Noise Reduction
By combining 2D and 3D noise reduction, the Sony FCB-EX2400P camera offers a wide selection of noise-reduction settings, from Level 1 to Level 5, to allow you to choose the ideal level for different shooting conditions.
Image Stabilization
The image stabilization function minimizes the appearance of shaky images caused by low-frequency vibration. This function is useful for outdoor surveillance and traffic monitoring applications.
StableZoom™
StableZoom is a function for performing correction using the image?stabilization function in accordance with the zoom ratio, and smoothly zooming up using a combination of the optical zoom and digital zoom. In StableZoom mode, this function starts naturally without bringing an abrupt change to the horizontal angle of view.
Advanced White Balance
For the White Balance function, there are two different modes: Outdoor Auto mode and Sodium Vapor Lamp mode. These modes are designed to adapt to changing natural light outdoors and to changing sodium vapor lamp lighting, respectively.
Extended Operating Temperature
The Sony FCB-EX2400P block camera can operate in a range of temperature from -5°C to 60°C.
Temperature Readout
The Sony FCB-EX2400P camera unit's internal temperature can be read out via VISCA. This data can be used as reference data to activate peripherals such as a fan or heater inside the camera equipment.
Slow AE Response
The Sony FCB-EX2400P block camera allows the user to set the auto response speed (up to two minutes) to enable the cameras to adapt to changes in lighting conditions. For example, when shooting in an underground parking lot, valuable images could otherwise be missed when car headlights cause an abrupt change in lighting conditions.

460TVL CCD SONY Camera Module FCB-EX480CP High-sensitivity 18x Optical Lens

SONY CCD Camera Module FCB-EX480CP High-sensitivity 18x Optical Lens

Description
Sony's new FCB-EX series of colour block cameras are equipped with an incredibly high
18x zoom lens which has a wide/telephoto horizontal field of view, making them ideally suited for use in
security domes and traffic monitoring applications. These cameras incorporate an advanced Spherical
Privacy Zone Masking feature which allows the masking function to be interlocked with the camera's
pan/tilt/zoom movements, regardless of the camera angle, ensuring the individual’s privacy.

Feature
*  Advanced Spherical Privacy Zone Masking function
(max. 24 masking blocks)
*  SMART lens control
(Sony Modular Automatic Lens Reset Technology)
*  Electronic-Flip (E-Flip) function
*  Alarm function
*  Auto ICR (IR Cut Filter Removal) Mode*
*  High-performance Digital Signal Processing (DSP)
*  High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA? protocol)
*  Equipped with key switch connector (CN601) for camera control with external equipment
*  Various customisable settings
*  Internal/External sync
*  Low power consumption (1.6 W with motors inactive)
*  EEPROM backup system without battery
*  16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers
*  Lead-free solder and halogen-free printed-circuit boards

Specifications

Image Device	1/4 type Super EXview HAD CCD
Signal System	PAL
Effective Pixels	Approximately 440,000 pixels
Lens	18x zoom, f=4.1mm (wide) to 73.8 mm (tele), F1.4 to F3.0
Angle of view (H)	48° (wide end) to 2.8° (tele end)
Digital zoom	12x (216x with optical zoom)
Minimum working distance	290mm (wide end) to 800mm (tele end)
Zoom movement speed	Optical WIDE to Optical TELE 2.1 sec
Focus movement speed	Far to Near 0.5 sec
Sync system	internal/External (V-Lock)
Horizontal Resolution	460TV Line
Minimum illumination	0.7 lx (typical) (50 IRE)
Minimum illumination ICR-ON	0.01 lx (typical) (F1.4, 1/3s, 50 IRE)
Auto ICR Mode	IR Cut- filter Removal
S/N ratio	More than 50 dB
Electronic shutter	1/1 to 1/10,000 sec., 22 steps
White balance	Auto, ATW, Indoor, Outdoor, One-Push, Manual
Gain	Auto/Manual (-3 to 28 dB, 2dB steps)
AE control	Auto, Manual, Priority mode, Bright, EV compensation, Back light compensation
Extend Dynamic Range (Wide-D)	N/A
Day/Night	Auto / Manual
EV compensation	-10.5 to 10.5dB, 1.5dB steps)
Back-light compensation	On/Off
Privacy zone masking	On/Off (24 positions)
Character Generator	Title display 1 lines
Flicker cancel	N/A
Focusing system	Auto (Sensitivity : Normal, Low), One-Push AF, Manual, Infinity, Interval AF, Zoom Trigger AF
Picture effects	E-Flip, Nega. Art, Black & White, Mirror Image
Camera Operation Switch	Zoom tele, Zoom wide
Video output Analog	VBS: 1.0Vp-p (sync negatibve), Y/C Output
Camera control interface	VISCA™ (TTL signal level), baud rate: 9.6Kb/s, 19.2Kb/s, 38.4Kb/s, Stop Bit: 1/2 selectable
Power Requirements	6V to 12V DC
Power Consumption	1.5W (motors inactive) / 2.7W (motors active)
Operating Temperature	0° to 50° C
Storage Temperature	-20° to 60° C
Mass	Approximately 230g
Dimensions	52.0 x 57.5 x 88.5 mm

Applications:

Applies to all places .

Competitive Advantage:
Colour Block Cameras
The FCB-EX480C series is equipped with a high-sensitivity CCD, allowing images to be captured at a minimum illumination of 0.7 lx.

SONY FCB-ER8300 HD 20x 4K Ultra Zoom Color Block Camera accessories-shops.com

SONY FCB-ER8300 HD 20x 4K Ultra Zoom Color Block Camera  accessories-shops.com



SONY FCB-ER8300 HD Camera :
Sony has brought out the 4K FCB-ER8300. Designed for security, surveillance and industrial applications, the FCB-ER8300 delivers true 4k resolution (3840 x 2160 pixels) at 30 frames per second (fps).
Targeting security and industrial applications the FCBER8300 camera block's small size and specifications also makes it suitable for video conference, inspection and medical uses.
The FCB-ER8300's compact form, auto-focus, and low power consumption allow for integration into Pan, Tilt, and Zoom camera systems. Using Sony sensors and powered by a Sony image processor, the FCBER8300 offers four times the resolution of 1080 FHD video with 73.4 degree horizontal field of view. A 20x zoom (coupled with it's extremely high resolution) allows for recognition and identification from distance.
Other features include ePTZ, Advanced Noise Reduction, Auto ICR, and Visibility Enhancer.
Function:*  OEM colour block camera with 1/2,3" CMOS sensor and 4k resolution
*  Integrated zoom lens (12x optical, 12x digital)
*  Autofocus
*  Image processor for full integration with sensor and lens with numerous automatic features (e.g. distortion correction, shading correction, chromatic aberration correction, MTF compensation, adaptive noise reduction)
*  Programmable I/Os
*  Resolution: 4096 pixels x 2160 pixels
*  Focal length: 3.9 mm (wide) to 46,8 mm (tele)
*  Minimum working distance: 10 mm (wide end) to 800 mm (tele end) (Default: 300 mm)
*  Output Format: HDMI (digital)
*  Serial communication with VISCA Protocol
*  Dimensions 60 x 64 x 105 mm (W x H x D)
*  Weight: 385G
Markets & applications:
*  Zoom module for PTZ cameras
*  Compact broadcast systems
*  Sport events
*  Surveillance
*  Traffic
*  Broadcasting

CCTV Sony Camera Zoom Module FCB-EX480CP Colour www.accessories-shops.com

accessories-shops.com SONY FCB-EX480CP 18x Color CCD Camera Module













Description: Sony's new FCB-EX series of colour block cameras are equipped with an incredibly high 18x zoom lens which has a wide/telephoto horizontal field of view, making them ideally suited for use in security domes and traffic monitoring applications. These cameras incorporate an advanced Spherical Privacy Zone Masking feature which allows the masking function to be interlocked with the camera's pan/tilt/zoom movements, regardless of the camera angle, ensuring the individual's privacy. The SONY FCB-480CP color block camera combines a 1/4 type EXview HAD® CCD with a minimum illumination of 0.7 lux (typical 50 IRE) and an auto ICR function. Comes equipped with a 18x lens featuring Sony's new SMART" Lens Control technology and upgraded 3-D "Spherical Privacy Zone Masking" function. SONY FCB-EX480CP Camera HIGHLIGHTS:* 1/4 type EXview HAD CCD * Minimum Sensitivity of 0.7 lux (50 IRE) * 216x total optical zoom (18x optical zoom/ 12x digital) * 380 000 pixels (NTSC) 440 000 (PAL) * High-speed serial communication (max. 38.4 kbps) and TTL signal-level control (VISCA™ protocol) for quick command processing * Programmable factory preset * Various AE modes including zoom trigger and interval mode * Various AF modes including spot AE mode to optimize the brightness within a specific area * Various customizable settings * Key switch control capability * Low power consumption (minimum 1.6 W) * EEPROM backup system without battery * Lead-free solder mounting board Sony FCB-EX480CP Camera Features: *  Advanced Spherical Privacy Zone Masking function (max. 24 masking blocks) *  SMART lens control (Sony Modular Automatic Lens Reset Technology) *  Electronic-Flip (E-Flip) function *  Alarm function *  Auto ICR (IR Cut Filter Removal) Mode* *  High-performance Digital Signal Processing (DSP) *  High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA? protocol) *  Equipped with key switch connector (CN601) for camera control with external equipment *  Various customisable settings *  Internal/External sync *  Low power consumption (1.6 W with motors inactive) *  EEPROM backup system without battery *  16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers *  Lead-free solder and halogen-free printed-circuit boards FCB-EX480CP SPECIFICATIONS: * Image Sensor: 1/4 type EXview HAD CCD * Number of Effective Pixels: Approx. 380 000 pixels (NTSC) 440 000 (PAL) * Lens: 18x zoom f=4.1mm (wide) to 73.8 mm (tele) F1.4 to F3.0 * Digital Zoom: 12x (216x with optical zoom) * Angle of View (H): 48° (wide end) to 2.8° (tele end) * Min. Working Distance: 35mm (wide end) to 800mm (tele end) * Sync. System: Internal/External (V-Lock) * Min. Illumination: 0.7 lx (typical) (50 IRE) * S/N Ratio: More than 50dB * Electronic Shutter: 1/1 to 1/10 000 sec. 22 steps * White Balance: Auto ATW Indoor Outdoor One-Push Manual * Gain: Auto/Manual (-3 to 28 dB 2dB steps) * AE Control: Auto Manual Priority mode Bright EV compensation Back light compensation * EV Compensation: -10.5 to 10.5dB (1.5 dB steps) * Back Light Compensation: On/Off * Privacy Zone Masking: On/Off (24 positions) * Flicker Cancel: Auto * Focusing System: Auto (Sensitivity : Normal Low) One-Push AF Manual Infinity * Interval AF Zoom Trigger AF * Picture Effect: E-Flip Nega. Art Black & White Mirror Image * Camera Operation Switch: Zoom tele Zoom wide * Video Output: VBS: 1.0Vp-p (sync negatibve) Y/B Output * Camera Control Interface: VISCA™ (TTL signal level) baud rate: 9.6Kb/s 19.2Kb/s 38.4Kb/s Stop Bit: 1/2 selectable * Storage Temperature: -20° to 60°C (-4°F to 140°F) * Operating Temperature: 0° to 50°C (32°F to 122°F) * Power Consumption: 6V

SONY FCB-EX15EP Mini CCD Color 12X Zoom Color Camera from Ryfutone Co.,LTD

SONY FCB-EX15EP Mini CCD Color 12X Zoom Color Camera Ryfutone Co.,LTD

Description:
The Sony FCBEX15EP is a 12x block camera with superb picture quality and features you've come to expect from the FCB camera line-up, such as digital output, color enhancement and sodium vapor lamp mode.
Sony FCB-EX15EP HIGHLIGHTS:
* True Progressive Scan: Ideally suited for IP-ready monitoring applications, the Sony FCB-EX15EP/FCB-EX15E cameras adopt a Progressive Scan mode to provide smooth and clear images without interlace artifact effects when viewing details in a moving image (i.e., license plate of moving vehicles, a person running). All the processing is done by the PS from the CCD readout, signal to processing to video output.
* Digital Output (ITU-R BT656): By using the digital interface, the quality of the camera video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.
* Temperature Readout: The value of the internal temperature of the FCB E Version cameras can be read out via the VISCA? protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.
* Color Enhancement: Ideally suited for low vision applications, new color enhancement options can make reading text and pictures less challenging. Available options include monochrome, binary, inverted and enhanced color modes.
* Auto Wide-D Mode: When dealing with high or low contrast lighting situations in the previous FCB cameras, it was necessary to switch off the Wide-D function by sending a VISCA command each time. With the new SONY FCB-EX995E/995EP and Sony FCB-EX490E/490EP, the cameras monitor the luminance differences within an image and automatically switch on and off the Wide D feature according to the contrasted lighting environment. How is this done? An image is divided into 12 blocks. The luminance of each block is then averaged and the camera monitors the difference of all 12 blocks. When the luminance difference between the highest and lowest block area reaches a pre-selected level, the camera automatically turns on/off the Wide-D. This process takes less than one second. In addition, it is possible to select three levels of luminance differences (low/mid/high).
* White Balance: Outdoor Auto Mode: The FCB-E Version cameras are equipped with a new Outdoor Auto Mode feature. When shooting at dawn or dusk, images could appear bluish. The new E version cameras automatically adjust the white balance to reduce the dark tones at dawn or dusk.
* White Balance: Sodium Vapor Lamp Mode: When cameras are shooting under a sodium vapor lamp (typically a street lamp or tunnel lamp), the image could appear to have a yellowish tint. The new FCB E Version cameras are equipped with a new Sodium Vapor Lamp Mode that automatically compensates for the sodium vapor lamp degree of Kelvin to restore objects to their original color.


Sony FCB-EX15EP Camera SPECIFICATIONS:

CAMERA
* Image Device: 1/4-type EXview HAD CCD (PS)
* Effective Pixels: 380,000
* Digital Zoom: 12x (144x with optical zoom)
* Horizontal Viewing Angle: 53.6deg (wide end) to 4.6deg (tele end)
* Minimum Object Distance: 10 mm* (wide) ~ 800 mm (tele) *Default: 290 mm
* Sync System: Internal/External (V-lock)
* Electronic Shutter: 1/1 to 1/10,000 s, total 22 steps
* White Balance: Auto. ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
* Gain: Auto/Manual/Max. Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps)
* Wide Dynamic Range: Yes
* Privacy Zone Masking: Spherical
* Character Generator: Yes (English/Chinese)
* Focus System: Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR On
* Picture Effects: E-flip, Nega Art, Black & White, MirrorImage, Color Enhancement
* Exposure Control: Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE

Sony FCB-EX15EP Camera VIDEO OUTPUT * Lens Value: 12x optical zoom lens, f=3.7 mm (wide) to 44.4 mm (tele), F1.6to F2.5
* S/N Ratio: More than 50 dB
* Minimum Illumination: Approx. 1.0 lx (F1.6, 50 IRE)
* Video Output: Analog: VBS: 1.0 Vp-p (sync negative)
* Horizontal Resolution: 550 TV Lines

Sony FCB-EX15EP Camera INTERFACE * Camera Control Interface: VISCA? protocol (CMOS 5 V) 9.6 Kbps, 19.2 Kbps, 38.4 Kbp; Stop bit, 1 bit

Sony FCB-EX15EP Camera GENERAL * Dimensions (W x H x D): 44.8 x 46.9 x 71.8 mm
* Weight: Less than 150 g
* Operating Temperature: -5deg - 60deg
* Storage Temperature: -20deg - 60deg
* Power Consumption: 3.7 W (motors active) / 2.3 W (motors inactive)
* Power Requirements: 6.0 V ~12.0 V DC
The order page : http://www.accessories-shops.com/sony-camera-series/sony-fcb-ex15ep-12x-zoom-color-camera.html

SONY FCB-EX12EP CCD Color Zoom Camera 12x Mini CCD Color Module Camera from Ryfutone Co.,LTD

SONY FCB-EX12EP CCD Color Zoom Camera 12x Mini CCD Color Module Camera Ryfutone Co.,LTD

The Sony FCB-EX12EP Camera is a 12x block camera with superb picture quality and features you've come to expect from the FCB camera line-up, such as digital output, color enhancement and sodium vapor lamp mode.
HIGHLIGHTS:
*  Digital Output (ITU-R BT656):
  By using the digital interface, the quality of the camera video signal is maintained with minimal deterioration. This can lead to cost savings due to the direct connection to codecs/systems without the need for any additional components.
*  Temperature Readout:
  The value of the internal temperature of the SONY FCBEX12E / SONY FCB-EX12EP camera can be read out via the VISCA  protocol. When checking the internal temperature of equipment (i.e., speed dome unit), it is possible to use this data to turn a fan or heater on/off inside the equipment as needed.
*  Color Enhancement:
  Ideally suited for low vision applications, new color enhancement options can make reading text and pictures less challenging. Available options include monochrome, binary, inverted and enhanced color modes.
*  White Balance: Outdoor Auto Mode:
  The SONY FCB-EX12EP/SONY FCB-EX12E camera is equipped with a new Outdoor Auto Mode feature. When shooting at dawn or dusk, images could appear bluish. The new E version cameras automatically adjust the white balance to reduce the dark tones at dawn or dusk.
*  White Balance: Sodium Vapor Lamp Mode:
  When cameras are shooting under a sodium vapor lamp (typically a street lamp or tunnel lamp), the image could appear to have a yellowish tint. The new SONY FCB-EX12EP / FCB-EX12E camera is equipped with a new Sodium Vapor Lamp Mode that automatically compensates for the sodium vapor lamp degree of Kelvin to restore objects to their original color.
SPECIFICATIONS
CAMERA
*  Image Device: 1/4-type EXview HAD CCD (PS)
*  Effective Pixels: 380,000
*  Digital Zoom: 12x (144x with optical zoom)
*  Horizontal Viewing Angle: 53.6 (wide end) to 4.6(tele end)
*  Minimum Object Distance: 10 mm* (wide) ~ 800 mm (tele) *Default: 290 mm
*  Sync System: Internal/External (V-lock)
*  Electronic Shutter: 1/1 to 1/10,000 s, total 22 steps
*  White Balance: Auto. ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual
*  Gain: Auto/Manual/Max. Gain Limit (-3 to +28 dB, +2 dB step/total 16 steps)
*  Wide Dynamic Range: No
*  Privacy Zone Masking: Spherical
*  Character Generator: Yes (English/Chinese)
*  Focus System: Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus compensation in ICR On
*  Picture Effects: E-flip, Nega Art, Black & White, MirrorImage, Color Enhancement
*  Exposure Control: Auto, Manual, Priority Mode (shutter priority & iris priority), Bright, EV Compensation, Slow AE
VIDEO OUTPUT*  Lens Value: 12x optical zoom lens, f=3.7 mm (wide) to 44.4 mm (tele), F1.6to F2.5
*  S/N Ratio: More than 50 dB
*  Minimum Illumination: Approx. 1.0 lx (F1.6, 50 IRE)
*  Video Output: Analog: VBS: 1.0 Vp-p (sync negative)
*  Horizontal Resolution: 550 TV Lines
INTERFACE
*  Camera Control Interface: VISCA? protocol (CMOS 5 V) 9.6 Kbps, 19.2 Kbps, 38.4 Kbp; Stop bit, 1 bit
GENERAL*  Dimensions (W x H x D): 44.8 x 46.9 x 71.8 mm
*  Weight: Less than 150 g
*  Operating Temperature: -5 ~ 60 degrees
*  Storage Temperature: -20? ~ 60 degrees
*  Power Consumption: 3.0 W (motors active) / 1.9 W (motors inactive)
*  Power Requirements: 6.0 V ~12.0 V DC

CCTV Sony FCB-EX11DP 10x Mini CCD Color Zoom Module Camera from Ryfutone Co.,LTD

SONY FCB-EX11DP 10X Mini CCD Color Zoom Module Cameras Ryfutone Co.,LTD

FEATURES:
* High Resolution of 530 TV Lines - The SONY FCB-EX11DP camera incorporates a ¼-type EXview HAD™ CCD with an Advanced Digital Signal Processor (DSP) to reproduce clear, detailed images at an extremely high horizontal resolution of 530 TV lines.
* Powerful & Versatile Zoom Capability - The SONY FCB-EX11DP camera is equipped with a 10x optical zoom lens, allowing for a zoom capability of up to 120x when used in combination with its 12x digital zoom.
* Video Motion Detection - As with Sony's FCB D version cameras, the new SONY FCB-EX11DP camera features a motion detection function. When motion is detected within an area of the picture designated by the user, an alarm signal is output via the camera's control interface using the VISCA™ protocol. Users can designate up to four detecting areas freely from any 8 vertical and 12 horizontal blocks. The video motion detection function is useful for unattended monitoring/recording found in security applications.
* Slow AE Response Function - The SONY FCB-EX11DP is equipped with a slow AE response function to automatically slow the rate at which the camera's exposure levels change. The rate can be set up to 32 times slower than when Full-Auto AE or Priority (shutter/iris) modes are selected. This function is useful when monitoring areas in which lighting conditions abruptly change.
* Advanced Spherical Privacy Zone Masking with Mosaic Effect - Unwanted or prohibited areas within an image can be masked precisely and appropriately with either a solid color or a mosaic effect. When the SONY FCB-EX11DP is integrated into a P/T/Z Camera system, this technology can keep masking areas interlocked with P/T/Z movements regardless of the camera angle.
* Multi-line On-screen Display - Up to eleven lines with 20 characters per line can be displayed on the SONY FCB-EX11DP monitoring screen using VISCA™ commands. Captions can be displayed on the screen to provide operators with a user-friendly interface.
SPECIFICATIONS:
The SONY FCB-EX11DP Camera:* Backlight Compensation On/Off
* Character Generator OSD: 11 Lines (20 characters per line)
* Camera Mode display: ON/OFF
* Digital Zoom 12x (120x with optical zoom)
* EV Compensation -10.5 to 10.5 dB (1.5 dB steps)
* Effective Pixels Approx. 380000 pixels
* Electronic Shutter 1 to 1/10000 s, 22 steps
* Exposure Control: Auto, Manual, Priority Mode, Bright, EV Compensation, Backlight * Compensation, Slow AE, Flicker Cancel Auto
* Focus System: Auto (Sensitivity: normal and low), One-push AF, Manual, Infinity, * Interval AF, Zoom Trigger AF
* Gain Auto / Manual (-3 to 28 dB 2 dB steps)
* Horizontal Viewing Angle 46° (wide) to 4.6° (tele)
* Image Device 1/4-type EXview HAD CCD
* Minimum Object Distance 200 mm (wide); 1.0 m (tele)
* Picture Effects: E-Flip, Nega Art, Black & White, Mirror Image
* Privacy Zone Masking On / Off (24 positions)
* Sync System Internal/External (V-lock)
* White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
SONY FCB-EX11DP General
* Dimensions (W x H x D) 1 7/16 x 1 5/8 x 2 3/8 inches (35.9 x 40.8 x 59.2 mm)
* Operating Temperature 32 to 122 °F (0 to 50 C°)
* Power Consumption 1.9 W (motors inactive); 2.8 W (motors active)
* Power Requirements DC 6 to 12 V
* Storage Temperature -4 to 140 °F (-20 to 60 C°)
* Weight 3.3 oz (95 g)
SONY FCB-EX11DP Interfaces
* Camera Control Interface VISCA (TTL signal level); Baud rate: 9.6 Kb/s; 19.2 Kb/s; 38.4 Kb/s; 1 or 2 Stop bit selectable
SONY FCB-EX11DP Video Output
* Horizontal Resolution On/Off (On: 530 TV lines)
* Horizontal Resolution Value 530 TV Lines
* Lens Value 10x
* Minimum Illumination 1.0 lux
* S/N Ratio More than 50 dB
* Video Output VBS: 1.0 Vp-p (sync negative); Y/C

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System

Wireless Head-mounted Mini Camera and 2.4GHz 5inch Wireless DVR Monitor Video Camera System



It's a new product combined the technology of electronics, optics and 2.4GHz wireless. It's very small size and light weight, very convenient to carry.
It is applicable to Head-mounted, Wearing Mini Camera .Wireless Head-mounted Mini Camera + 2.4GHz wireless camera DVR receiver monitor 5-inch screen .
It can be used in the dangerous & complicated surroundings, like high-altitude working. It's easy operated and powered by high capacity Li-battery with 1.5 hours continuous working time. High brightness LED/IR offers long visible range up to 8 meters. Moreover, it offers high definition video and good performance. If it works with our wireless DVR-TE968H, users can as inspect according to video, as record. Look over some recorded video repeatedly. If the video is not satisfactory, users can delete it and rerecord. DVR memory is large up to 32GB.If it works with wireless USB receiver, users can view instant video in computer, and record, edit and print the inspection report.

Application:Auto engine and gearing inspection; Medical inspection, like dental, skin disease, gynecology, etc.; All kinds of pipe & tube, building inspection; Antiterrorism search & rescue; Safety inspection; Archeology,Head-mounted / Wearing Mini Camera ,etc.





Features:* Super small size  & light weight camera & DVR, very convenient to carry;
* High resolution 720X576pix(PAL),720x480pix(NTSC),520TVL camera offers good quality video;
* 6 LED/IR lamps offers 5 or 8 meters clear view in complete darkness;(LED can be highlight or turned off;IR is invisble light);
* High capacity built-in Li-battery offers power supply for camera and DVR anywhere;
* No need any installation, and very easy to operate, just power on and it works!
* First complete wireless mini inspection camera with LED in the world!
* Portable 5-inch HD(800X480pix) DVR offers both real time and recorded videos & photos;
* Motion detect recording and loop recording available;
* Large memory available( support mini SD card up to 32GB)
* Wireless transmission offers convenience for remote view.
Borescope Camera Specifications:

Frequency		2414Mhz(CH1)
RF Output Power		50mW (300 feet in line of sight)
Total Pixels		PAL:720 X 576 NTSC:720 X 480
Minimum Illumination		0.01Lux / F1.2
Lens Focus		1-100cm (adjustable)
View Angel		90°
Light Source	LED	2200mcd x 6 Range of LED lamp: 5 meters
	IR/940nm	70mW x 6 Range of IR940 lamp: 5 meters
	IR/850nm	70mW x 6 Range of IR850 lamp: 8meters
Li-battery Capacity		380MAH
Working Time		1.5 hours
Charge Time		1.5 hours
Voltage		DC 5V
Current		Lamp off:160mA Lamp on: 260mA Lamp highlight:300mA
Weight		35g
Size(DXL)		20mm X 84mm

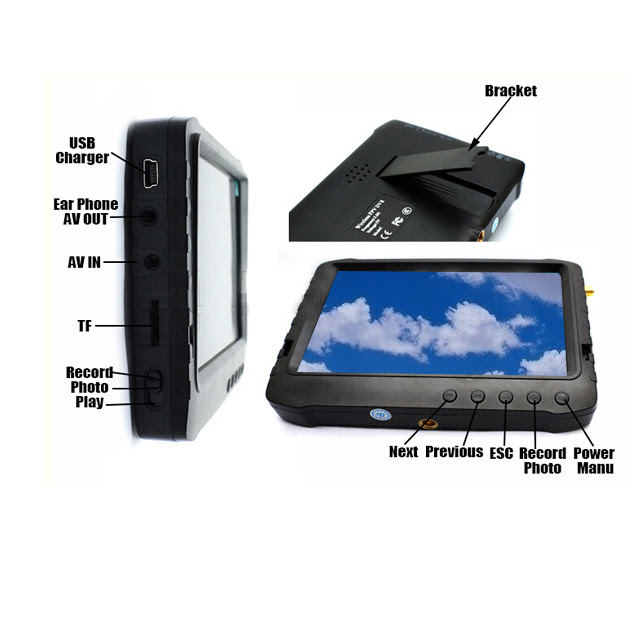

2.4GHz Wireless DVR :
The latest portable mini DVR supports both wireless and wired cameras. Not only this, it adds new function of photo, motion detect, loop recording, power saving (auto shutdown, auto off-screen), etc. This DVR is the ideal choice for security & protection, evidence & investigation, like police, household, sports, automotive industry, shops, etc.. At the same time, with its stylish and high-end appearance,  it also becomes the fashion choice of leisure goods.


Features and functions:
*  Mini size and portable recorder with fashionable & new design;
*  5-inch super large HD screen (800X480pix), which provides clear and smooth image;
*  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours;
*  Supports storage up to 32G TF card, which records up to 32 hours;
*  Supports wireless signal from total 24 channels among 2.4GHz & 5.8GHz (within & beyond) frequency;
*  Folding hidden external antenna assures excellent wireless receiving;
*  Supports AV IN function: receiving signal from wired cameras;
*  Photo function: it can take, review & store pictures;
*  Supports intelligent motion detect video recording;
*  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;
*  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;
*  Support power-saving mode: automatic shutdown, automatic off-screen;
*  Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions.;
*  It¡¯s of high compatibility, which supports almost all computer operating system, including MAC;
*  Supports multi-language.
Specifications:

Items		Value
Wireless Receiving	2.4GHz-8 channels	CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz.
		CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz
	Sensitivity	-92dB
	Receiving distance	100 meters
AV IN	TV system	NTSC / PAL
	Output voltage	3.6-4.2 V
HD 5-inch LCD screen	Active area	108mm(W) X 64.8mm(H)
	Resolution	800 X 480 Pixel
	Luminance for LCM	200 cd/M2
Cape clear 5-inch LCD screen	Active area	118mm(W) X 62.8mm(H)
	Resolution	480 X 272 Pixel
	Luminance for LCM	300cd/M2
Video	Resolution	720*576 / 640*480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker	1W
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB(optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Voltage	DC 5V
	Current(receiving mode)	660MA
	Current( recording mode)	680MA
	Current(recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200mAh
Standby time	Wireless record	≥9.5 hours(off-screen);≥5hours(on-screen)
	Wired record	≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included.
Size (L x W x H)		131mm x 86mm x 18mm
Weight(g)		205g

Packages:
* DVR X 1PCS
* User manual x1pcs
* Stereo earphone x1 pcs
* USB cable x1pcs
* AC adapter x1pcs
* Camera seat x1 pcs
* Back holder for installation x1 pcs

5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield

5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield

5.8GHz 32CHS 5inch Wireless Mini Monitor DVR With Sun Shield
Feature:
* 5" HD snow Remote control style FPV monitor, no screen,track your plane anytime,don't need to worry about lossing trace for blue screen;
* 32CHS 5.8GHz wireless receiver ,one monitor for multiple plane with different frequency;
* Press one button , then it begin to scan and lock channels Automically, so easy.
* Support 32GB SD card storage wireless fpv dvr- RC plane black box:record all details and amazing video moment.
* Professinal sunshade +3200mAh battery, 10hous working time ,enjoy your outdoor pleasure flying time.
* Unique outward, simple but Practical, the best 5" portable FPV receiver monitor and dvr all in one.
* Black fpv monitor or white one for optional, perfect match with dji,fatshark remote controller.



Specifications :

Receiver	5.8Ghz 32CHS -92dB	A1: 5.740GHz; A2: 5.760GHz; A3: 5.780GHz; A4: 5.800GHz A5: 5.820GHz; A6: 5.840GHz; A7: 5.860GHz; A8: SPI B1: 5.725GHz; B2: 5.745GHz; B3: 5.765GHz; B4: 5.785GHz B5: 5.805GHz; B6: 5.825GHz; B7: 5.845GHz; B8: 5.865GHz C1: 5.733GHz; C2: 5.752GHz; C3: 5.771GHz; C4: 5.790GHz C5: 5.809GHz; C6: 5.828GHz; C7: 5.847GHz; C8: 5.866GHz D1: 5.705GHz; D2: 5.685GHz; D3: 5.665GHz; D4: 5.645GHz D5: 5.885GHz; D6: 5.905GHz; D7: 5.925GHz; D8: 5.945GHz
	Antenna	RF-SMA 4 Blade
Displayer	Screen size	5 inch LCD screen
	Resolution	800 X 480 Pixel
	Contrast	500:01:00
	Brightness	350 cd/M2
Recorder	Storage	TF card 1GB-32GB(optional)
	Video compress	MPEG-AVI 30fps
	Language	Multiple
AV IN	TV system	NTSC / PAL (for wired camera)
AV-OUT	Output voltage	3.6-4.2 V
Audio	Frequency	20HZ-20KHz stereo
	Earphone Output	Left:20MW + right 20mW[16O](suit to largest volume)
	Speaker	1W
HD 5-inch LCD Screen	Active area	108mm(W) x 64.8mm(H)
	Resolution	800 x 480 Pixel
	Luminance for LCM	200cd/M2
Video	Resolution	720*576/720*480
	Video compress	MPEG-AVI 30fps
	Play format	MPEG-AVI
Photo	Format	JPG/JPEG
Storage	External SD card	TF card 1GB-32GB (optional)
	32GB recording time	10-32 hours
	1GB photos	15625pcs
Operating system	PC	Windows & Mac OS
	Port	USB 2.0
	Language	Multiple
Power	Votage	DC 5V
	Current(receiving mode)	600MA
	Current(recording mode)	680MA
	Current( recording with off-screen mode)	340MA
	AC adapter	DC 5V 2A
	Built-in battery	Li-battery 3200Mah
Standby time	Wireless record	≥9.5 hours(off-screen);
	Wired record	≥12 hours(off-screen);
Sunshade	one button open	Patend LCD hood
Size(LxWxH)	Without sunshade	131 x 90.5 x 18mm
	With sunshade	131 x 90.5 x 28mm
Weight	Without sunshade	215G
	with sunshade	260G

Package:
* DVR x 1pcs ;
* usb cable x 1pcs ;
* AC adapter x 1pcs ;
* AV-OUT cable x 1pcs ;
* AV-IN cable x 1pcs ;

USB 0.008Lux 520TVL Mini Camera And 2.4GHz 5inch Wireless CCTV Camera DVR Monitor Receiver

USB 0.008Lux 520TVL Mini Camera And 2.4GHz 5inch Wireless CCTV Camera DVR Monitor Receiver



Usage: Plug and play ! Just plug it to USB port of AC adapter,computer,camera starts to work. And at the same time, you can use any 2.4GHz wireless receivers (like web video server, wireless DVR/ AV receiver/ USB receiver) to receive and record real time video and audio.8 channels available for your choice. 2.4GHz Mini Camera Main Features:   1. Small size with removable and foldable mounting holes: easy to install at any hidden places, including into narrow rooms and slim tubes, etc.; 2. Wireless transmission,not limited by cable.Very convenient to put it anywhere.Just plug & play. 3. High resolution(786X576pix;520TVL), high sensitivity, high SNR; 4. Day & night dual mode auto switch and continuous working;Low Illumination(0.008lux), high quality video record function; 5. Wide view angle(90 degree); 6. Strong output power brings long transmission range up to 150m(L.O.S.) 7. Convenient power supply and continuous working. 8.Encrypted frequency(2.3G) available to avoid interference from Wifi equipments,WLAN network, bluetooth equipments;and other general 2.4GHz equipments can't receive your signal,protect privacy well. Specification: Frequency 2.4G 2414Mhz(CH1) 2432MHz(CH2) 2450MHz(CH3) 2468MHz(CH4) Working channel:1 of 8 2.3G 2370Mhz(CH1) 2390MHz(CH2) 2490MHz(CH3) 2510MHz(CH4) Audio Subcarrier Frequency 6.0Mhz Antenna 2.4GHz built-in antenna RF Output Power 100mW Transmission Range 150 meters Total Pixels NTSC:656(H)×492(V) PAL:786(H)×576(V) Horizontal Resolution 520TV Lines Minimum Illumination 0.008Lux/F1.2 Lens & View angle 90 ° S/N Ratio ﹥48dB Size (L) 1.8m {lens size (L x D)：27mm X 15mm } Net Weight（g） 50g Current 160mA Voltage DC 5V Operation Temperature - 20°C ~ + 50°C ，Relative Humidity:85﹪ HD 2.4GHz wireless mini DVR :  *  5-inch super large HD screen (800X480pix), which provides clear and smooth image,mini size and portable recorder with fashionable & new design; *  Built-in 3200mAh high capacity Li-battery provides super long recording time up to 9.5 hours; *  Supports storage up to 32G TF card, which records up to 32 hours; *  Supports  2.4GHz & 5.8GHz  wireless frequency; *  8 channels auto/manual switch; *  Folding hidden external antenna assures excellent wireless receiving; *  Supports AV IN function: receiving signal from wired cameras; *  Photo function: it can take, review & store pictures; *  Supports intelligent motion detect video recording; *  Overwrite: It supports loop recording, which can automatically overwrite   when storage is full;  *  Seamless continuous record:No intermittent recording, it will not miss any  detail and wonderfulness;  *  Support power-saving mode: automatic shutdown, automatic off-screen;  *   Equipped with full set of mounting brackets, it can be hand-held, stand desktop, hanging on the wall, placed inside the car, different occasions; *  It's of high compatibility, which supports almost all computer operating system, including MAC; *   Supports multi-language. HD 2.4GHz wireless mini DVR Specifications: Items Value Wireless Receiving 2.4GHz –8 channels CH1: 2414MHz; CH2: 2432MHz; CH3: 2450MHz; CH4: 2468MHz. CH5: 2490MHz; CH6: 2510MHz; CH7: 2390MHz; CH8: 2370MHz 　 　 　 　 Sensitivity -92dB 　 Receiving distance 100 meters AV IN TV system NTSC / PAL Output voltage 3.6-4.2 V HD 5-inch LCD screen Active area 108mm(W) X 64.8mm(H) Resolution 800 X 480 Pixel Luminance for LCM 200 cd/㎡ Cape clear 5-inch LCD screen Active area 118mm(W) X 62.8mm(H) Resolution 480 X 272 Pixel Luminance for LCM 300cd/㎡ Video Resolution 720*576 / 640*480 Video compress MPEG-AVI 30fps Play format MPEG-AVI Audio Frequency 20HZ-20KHz stereo Earphone Output Left: 20MW+ right 20mW [16O](suit to largest volume) Speaker 1W Photo Format JPG/JPEG Storage External SD card TF card 1GB-32GB(optional) 32GB recording time 10-32 hours 1GB photos 15625pcs Operating system PC Windows & Mac OS Port USB 2.0 Language Multiple Power Voltage DC 5V Current(receiving mode) 660MA Current( recording mode) 680MA Current(recording with off-screen mode) 340MA AC adapter DC 5V 2A Built-in battery Li-battery 3200mAh Standby time Wireless record ≥9.5 hours(off-screen); ≥5hours(on-screen) Wired record ≥12 hous(off-screen); ≥6hours(on-screen) *LED camera not included. Size (L x W x H) 131mm x 86mm x 18mm Weight(g) 205g Package: 1 * Wireless DVR 1 * Mini Camera 1 * Power adapter 1 * USB line 1 * Install back clip 1 * specification

100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR-- Ryfutone Co.,LTD



100M Range No Interference 5.8G Wireless Door Peephole Camera with DVR




Do You Want to monitor if any unauthorised people is outside your House?
Do You Want To Know Who Come To Your House ?
Get The Door Peephole Camera Kit Now!!
*  No visible wires from the door's exterior, and exact same looking as original one,so the camera won't look suspicious;
*  Pure brass materia, it's noble and durable;
*  5.8G no-interference frequency, 100m wireless range;
*  Records video in high and low light(0.008lux) situations;
*  Wide-angle(90°) lens makes it easy to capture footage of a corridor;
*  5-inch large screen DVR playback Video instantly without connecting to computer;
* Motion Detection Available : Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery);
*  No need any cable installation, just plug and play;
*  Support SD Card(up to 32G) recording for any evidence needed.



Outline Size of camera:






Specification:
* Camera:

Working frequency	G1-within 5.8G	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz			Working Channel: 1 of 24
	G2-Beyond 5.8G	CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz. CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
	G3-Within 5.8G	CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz. CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna		External antenna
RF OUTPUT POWER		25mW
TRANSMISSION RANGE		100 meters
SENSOR DIMENSION		NTSC：720（H）×480（V）		PAL：720（H）×576（V）
HORIZONTAL RESOLUTION		480TV Lines
SENSITIVITY		0.008Lux/F1.2
LENS & VIEW ANGLE		0.5mm F1.2 / 90 °
PEEPHOLE SIZE(L x D)		38-60mm X 14mm
WEIGHT（g）		20g
WORK CURRENT		230mA
POWER REQUIREMENT			DC 4V
OPERATING TEMPERATURE			- 20°C ~ + 50°C ，Relative humidity 85﹪

* 5-in HD Mini DVR:

Items			Value
Wireless Receiving	Wireless freq. (1 of 3 groups)
		Within 5.8G-A 8 channels	CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz. CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
		Beyond 5.8G-B 8 channels	CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz. CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
		Within 5.8G-C 8 channels	CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz. CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
	Sensitivity		-88dB
	Receiving distance		100 meters
AV IN	TV system		NTSC / PAL
	Output voltage		3.6-4.2 V
HD 5-inch LCD screen	Active area		108mm(W) X 64.8mm(H)
	Resolution		800 X 480 Pixel
	Luminance for LCM		200 cd/㎡
Cape clear 5-inch LCD screen	Active area		118mm(W) X 62.8mm(H)
	Resolution		480 X 272 Pixel
	Luminance for LCM）		300cd/㎡
Video	Resolution		720*576 / 640*480
	Video compress		MPEG-AVI 30fps
	Play format		MPEG-AVI
Audio	Frequency		20HZ-20KHz stereo
	Earphone Output		Left: 20MW+ right 20mW [16O](suit to largest volume)
	Speaker		1W
Photo	Format		JPG/JPEG
Storage	External SD card		TF card 1GB-32GB（optional）
	32GB recording time		10-32 hours
	1GB photos		15625pcs
Operating system	PC		Windows & Mac OS
	Port		USB 2.0
	Language		Multiple
Power	Voltage		DC 5V
	Current(receiving mode)		660MA
	Current( recording mode)		680MA
	Current（recording with off-screen mode）		340MA
	AC adapter		DC 5V 2A
	Built-in battery		Li-battery 3200Mah
Standby time	Wireless record		≥9.5 hours(off-screen); ≥5hours（on-screen）
	Wired record		≥12 hours(off-screen); ≥6hours（on-screen） *LED camera not included.
Size (L x W x H)			131mm x 86mm x 18mm
Weight(g)			205G

Package:
1*Wireless Door Peephole Camera;
1*AC Adapter
1*DVR
1*cable
1*usb cable
1*AV input cable
1*AV output cable
1*manual
